Message Flow¶

This document describes how ISO 8583 messages flow through iso8583sim.

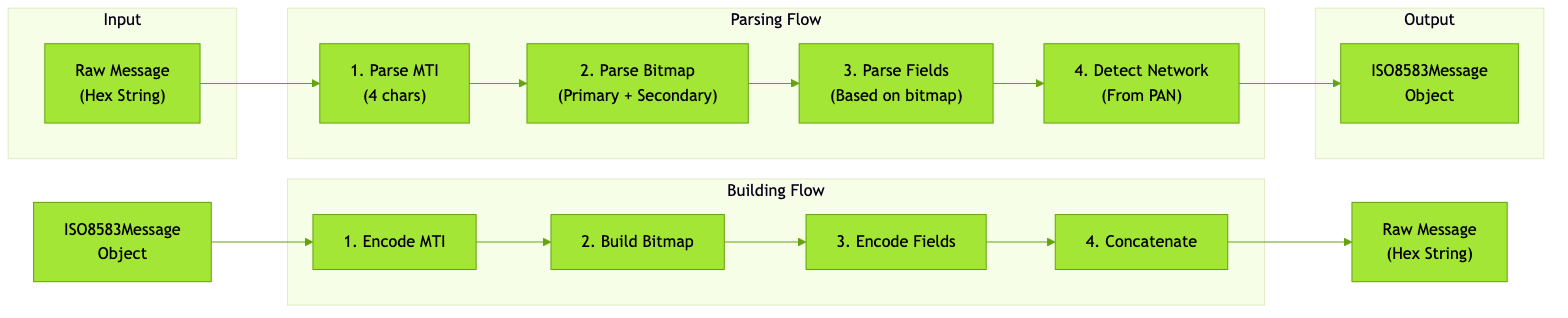

Message Flow

Parsing Flow¶

Raw Message String
        │
        ▼
┌───────────────────┐
│   ISO8583Parser   │
│                   │
│  1. _parse_mti()  │──▶ Extract 4-character MTI
│                   │
│  2. _parse_bitmap()│──▶ Parse primary bitmap (8 bytes hex)
│                   │    Check bit 1 for secondary bitmap
│                   │
│  3. _get_present_ │──▶ Convert bitmap to list of
│     fields()      │    present field numbers
│                   │
│  4. _parse_fields()│──▶ For each present field:
│                   │    - Get field definition
│                   │    - Parse based on type (fixed/LLVAR/LLLVAR)
│                   │    - Detect network from PAN
│                   │
│  5. _parse_emv()  │──▶ If Field 55 present:
│     (optional)    │    Parse TLV tags
│                   │
└───────────────────┘
        │
        ▼
  ISO8583Message

Parser Methods¶

Method	Purpose
`parse()`	Main entry point, orchestrates parsing
`_parse_mti()`	Extract MTI (positions 0-3)
`_parse_bitmap()`	Parse 16-hex-char primary bitmap
`_get_present_fields()`	Convert bitmap bits to field numbers
`_parse_fields()`	Parse individual field values
`_parse_fixed_field()`	Parse fixed-length field
`_parse_variable_field()`	Parse LLVAR/LLLVAR field
`_detect_network()`	Identify card network from PAN

Building Flow¶

  ISO8583Message
        │
        ▼
┌───────────────────┐
│   ISO8583Builder  │
│                   │
│  1. Format fields │──▶ For each field:
│                   │    - Get field definition
│                   │    - Apply padding/formatting
│                   │
│  2. Validate      │──▶ ISO8583Validator.validate_message()
│                   │    - Check required fields
│                   │    - Validate field types
│                   │    - Network-specific rules
│                   │
│  3. Build MTI     │──▶ Append 4-character MTI
│                   │
│  4. Build bitmap  │──▶ Create bitmap from present fields
│                   │    - Primary: fields 1-64
│                   │    - Secondary: fields 65-128
│                   │
│  5. Build fields  │──▶ For each field in order:
│                   │    - Add length prefix (LLVAR/LLLVAR)
│                   │    - Append field value
│                   │
└───────────────────┘
        │
        ▼
Raw Message String

Builder Methods¶

Method	Purpose
`build()`	Main entry point, orchestrates building
`_format_field_value()`	Apply padding and formatting rules
`_build_bitmap()`	Generate bitmap from present fields
`_build_field()`	Build individual field with length prefix

Validation Flow¶

  ISO8583Message
        │
        ▼
┌────────────────────────┐
│   ISO8583Validator     │
│                        │
│  1. validate_mti()     │──▶ Check MTI format (4 digits)
│                        │    Validate message class/function
│                        │
│  2. validate_bitmap()  │──▶ Check bitmap format (16 hex)
│                        │    Verify field presence matches
│                        │
│  3. validate_fields()  │──▶ For each field:
│                        │    - Check type (n/a/an/b)
│                        │    - Validate length
│                        │    - Apply field-specific rules
│                        │
│  4. Network validation │──▶ Check required fields present
│     (if network set)   │    Apply network-specific rules
│                        │
└────────────────────────┘
        │
        ▼
  List[str] (errors)

EMV Data Flow¶

Field 55 contains EMV chip card data in TLV (Tag-Length-Value) format:

Field 55 Raw Data
        │
        ▼
┌────────────────────────┐
│   parse_emv_data()     │
│                        │
│  While data remains:   │
│  1. Read tag (1-3 bytes)│
│  2. Read length (1-3 bytes)│
│  3. Read value (length bytes)│
│  4. Store in dictionary │
│                        │
└────────────────────────┘
        │
        ▼
  Dict[tag, value]
  e.g., {"9F26": "ABCD...", "9F27": "80"}

Object Pooling (High-Throughput)¶

For high-throughput scenarios, MessagePool reduces object allocation:

┌──────────────────┐
│   MessagePool    │
│                  │
│  acquire()       │──▶ Get message from pool or create new
│                  │
│  release()       │──▶ Reset and return message to pool
│                  │
│  Parser uses:    │
│  pool.acquire()  │──▶ Get blank message
│  ... parse ...   │
│  return message  │
│                  │
│  User returns:   │
│  pool.release()  │──▶ Message reused next time
│                  │
└──────────────────┘

Cython Acceleration¶

When Cython extensions are compiled, critical functions are replaced:

Python Function	Cython Function	Speedup
`_parse_mti()`	`parse_mti_fast()`	~2x
`_parse_bitmap()`	`parse_bitmap_fast()`	~2x
`_get_present_fields()`	`get_present_fields_fast()`	~1.5x
`_validate_pan_luhn()`	`validate_pan_luhn_fast()`	~3x

Detection is automatic:

try:
    from ._parser_fast import parse_bitmap_fast
    _USE_CYTHON = True
except ImportError:
    _USE_CYTHON = False
